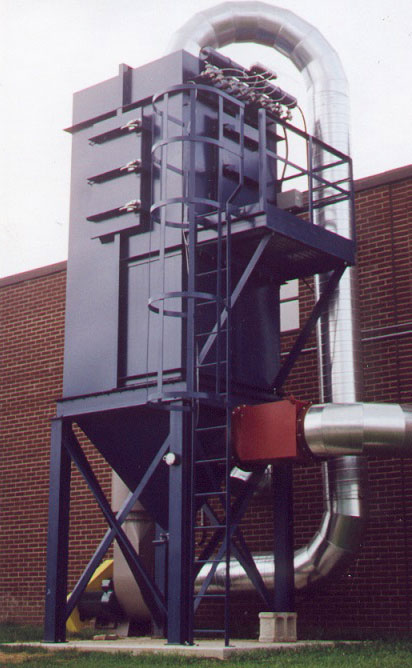

Dust Collector on Powder Paint Manufacturing line, 8000 cfm. A complete Turnkey system supplied and installed. Design, Permits, Fabrication, Fan, Ducting, Abort Damper, Spark Detection, Suppression System, Foundations, System Certification.

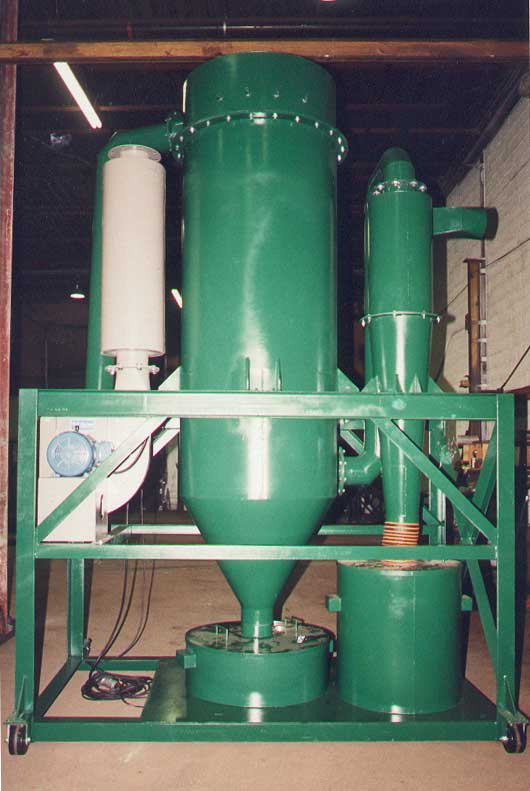

Portable Dust Collection System for metal grinding operation, Baghouse, Cyclone Fan and Fan Silencer, Extraction Arm, all mounted on a portable common frame
Mining operation, Left- Material Loading Vent 20, 000 cfm , Middle- Twin (2) Central Process Vent Dust Collectors 40,000 cfm each, Right- (8) Material Classifying Air Separation Collectors 5000 cfm ea. With ceramic lined Cyclones and Fans

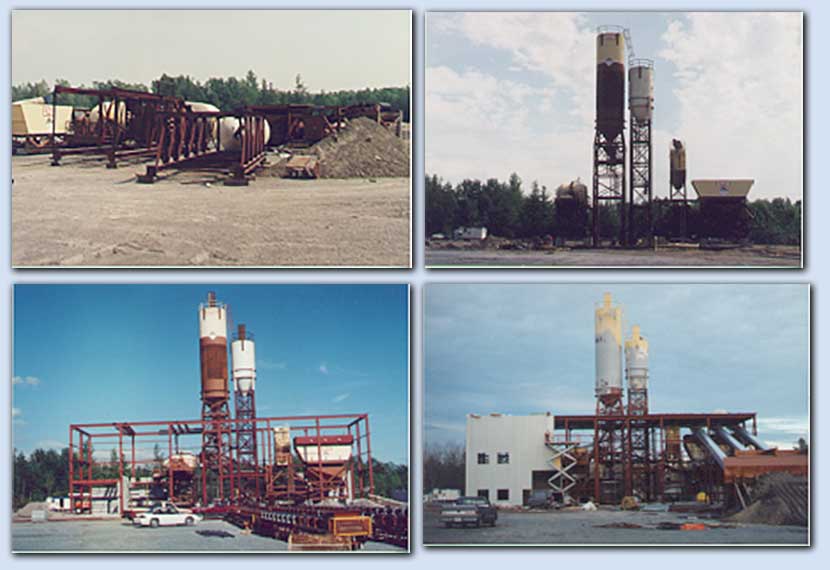

60 ton Cement Silo capacity revised to 110 ton split silo, Cut silo in two, extend inner wall, extend shell, install Silos and Load Point Dust Collection System
Twin Dust Collection System for furniture manufacturing and finish spray line 40,000 cfm each. Foundations, Permits, Baghouse, Screw Conveyors, Rotary Discharge Valves, Siding, Roll Up Doors, Fan, Abort Damper, After Filter, Spark Detection, Spark Suppression, Pressure Relief Vented, Ducting, supply and install

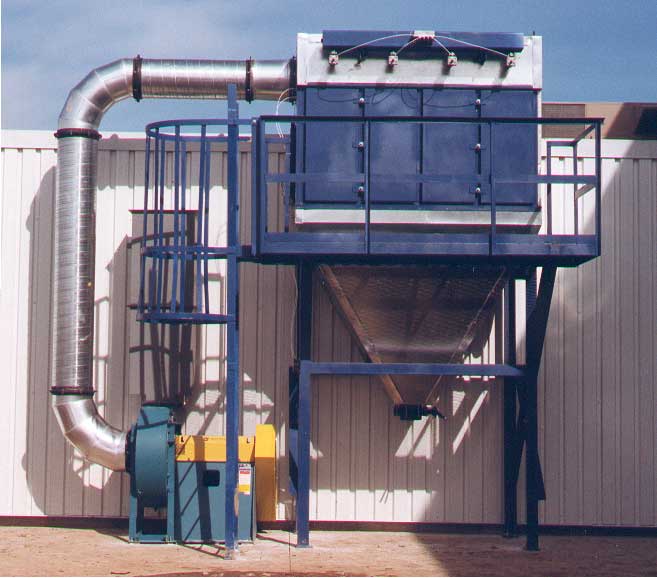

Cartridge type Dust Collector insulated complete with galvanized cladding, 5000 cfm, Powder Paint Manufacturing System Vent
Filter Receiver for Food Industry, Stainless Steel construction product contact, 1000 cfm

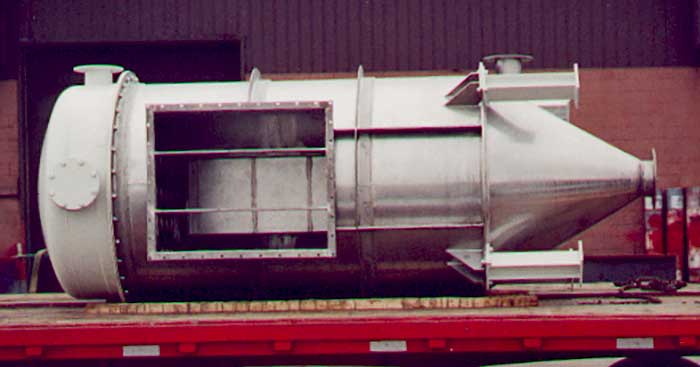

Filter Receiver for Beer making operation, Pneumatic Conveying Line, Stainless Steel product contact, Explosion Relief Vent, 2000 cfm

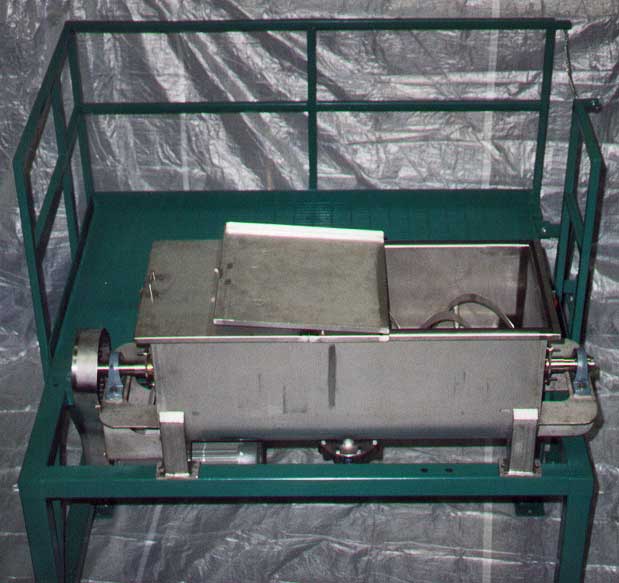

Ribbon Blender c/w support structure, Stainless Steel construction
Cartridge type Dust Collector, horizontal mount, plasma cutting table vent
Down Draft Tables, Car body manufacturer

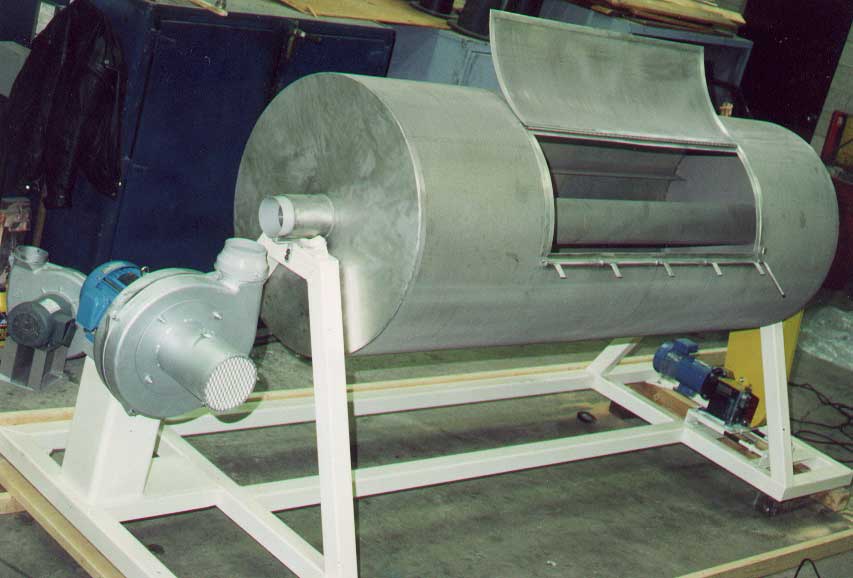

Rotary Pasta Drier, Stainless Steel product contact
Ready Mix Cement Load Point Dust Collection System, supply and install

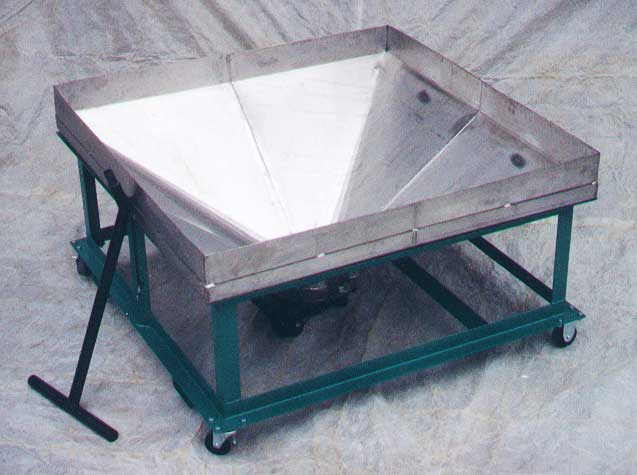

Hand cart for paint pigments, Stainless Steel construction, design and custom fabrication

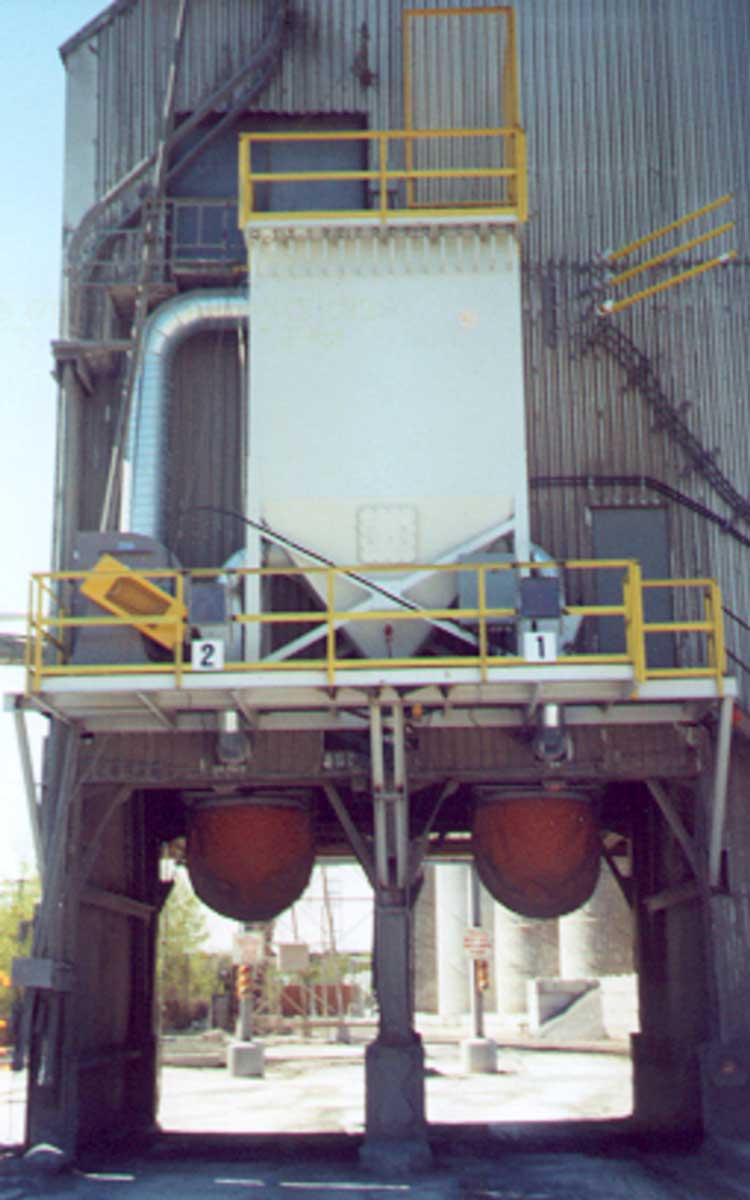

Ready Mix Load Point Dust Collection System, drive through type, twin system, operates two bays utilizing diverter valve, both bays operate at the same time or independent, collected material returned to load point via Auger, design, supply and installation
Nuisance Vent Collector for Mining Industry, Grinder Vent, 15000 cfm, heavy duty construction
Filter Receiver for Mining Operation, grinding system receiver, crushed limestone
Ready Mix load point Dust Collection System, Drive through type, design, supply and installation

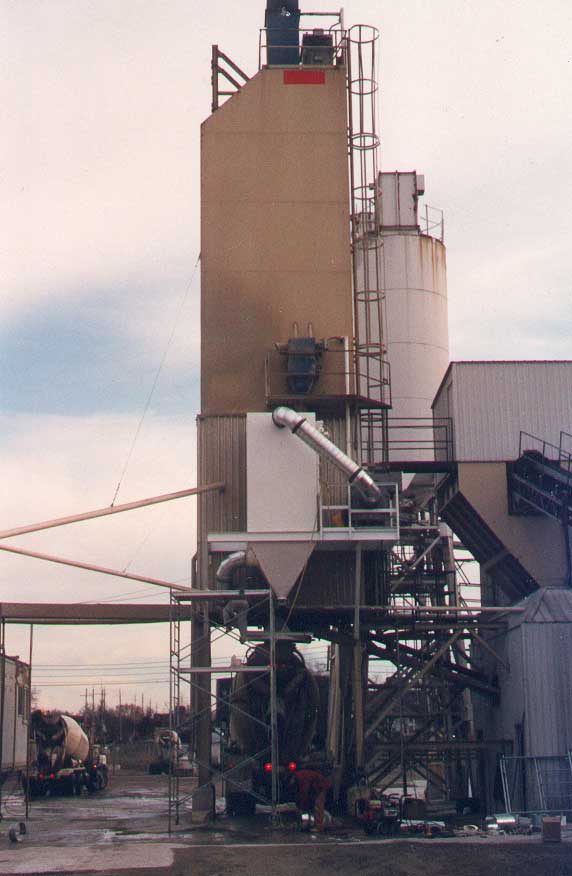

Ready Mix load point Dust Collection System, Drive through type, design, supply and installation

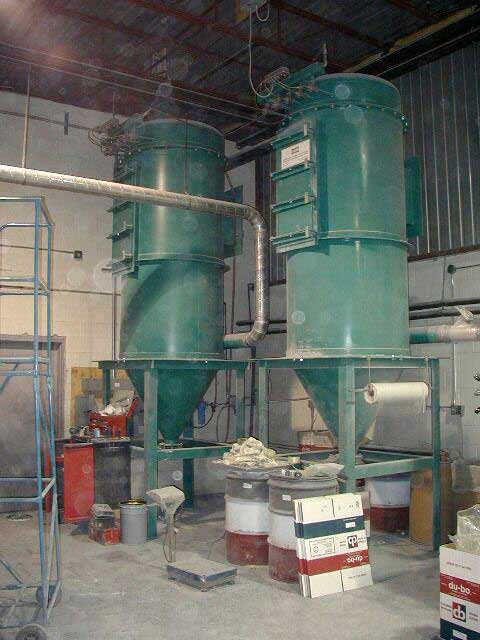

Filter Receivers for Powder Paint Manufacturing, design, supply and installation

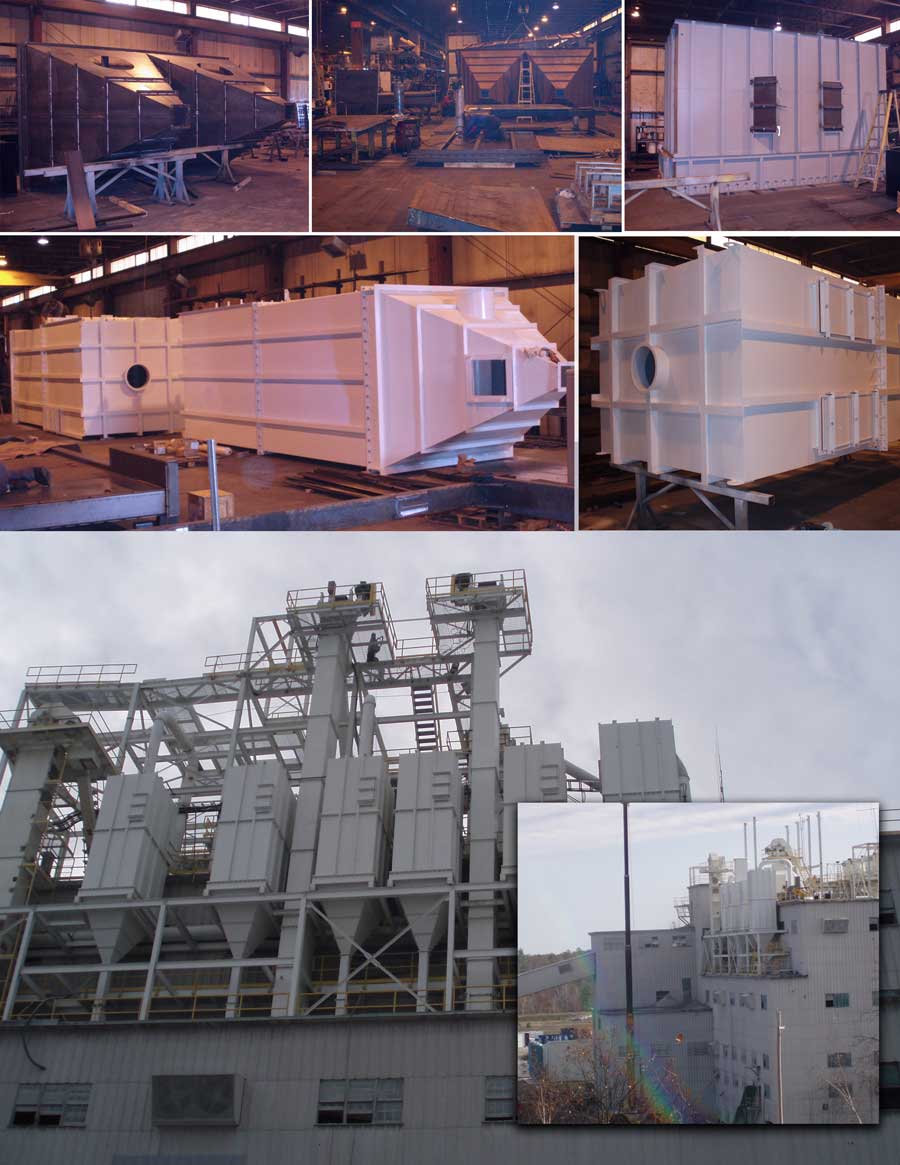

Dust Collectors, knock out boxes for Mining Operation air classifying system, multiple collectors mounted on a common support structure, modular design for efficient operation and process system stability.

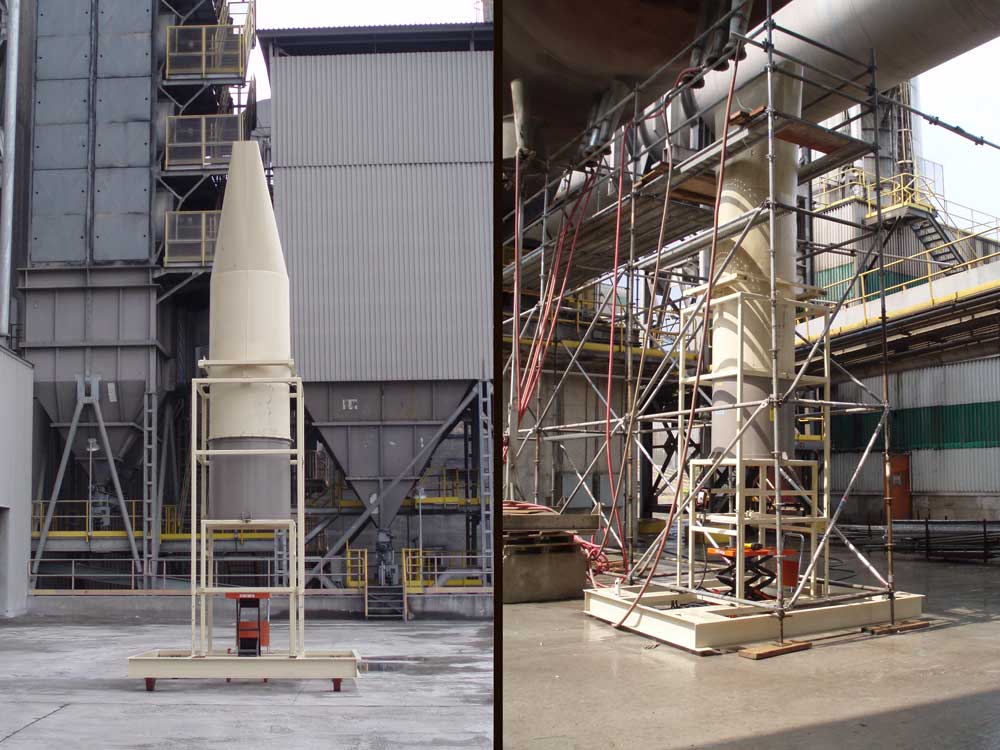

Custom Fan moves up and down and is portable for spot cooling of Cement manufacturers kiln. Design, supply and installation
Filter Receiver for Air Swept Classifying Mill Circuit, grinding Sulphur, twin units complete Explosion Relief Vents, NFPA design. Design and supply.
Bin Vent on Sugar transfer station, Chocolate Manufacturer, Stainless Steel, Food Grade construction

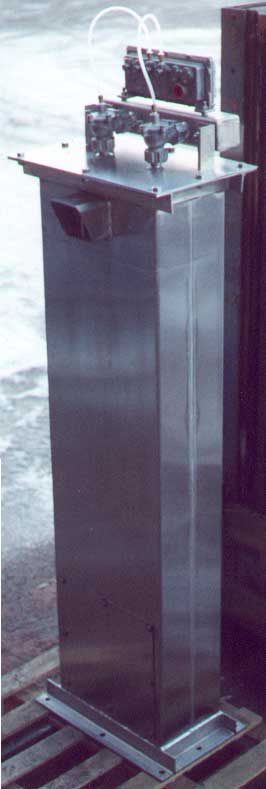

Bin Vent on transfer tank, Stainless Steel, Food Grade construction

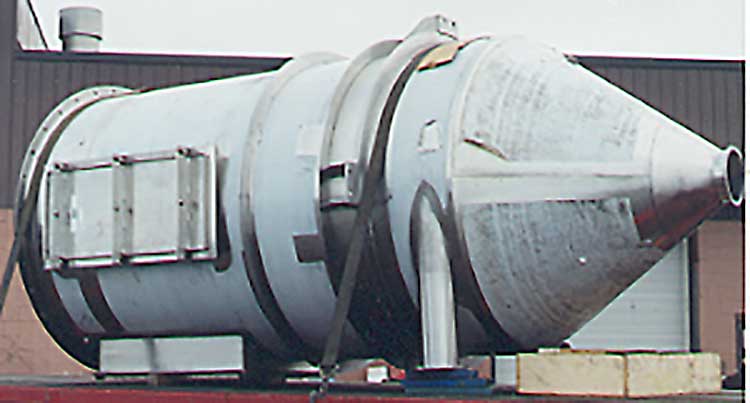

Filter Receiver on Pasta Making operation, Stainless Steel construction, Food Grade design. Designed and fabricated to NFPA guidelines
Filter Receivers on Air swept classifier milling system for fire retardant components, Design supply and installation
Ready Mix Concrete plant, Load point Dust Collection System, mounted off the side of existing silo. Drive through type, both ways. Turnkey System Supplied and installed
Ready Mix Concrete plant, stand-alone Dust Collector, back in plant, later converted to drive through plant. Turnkey System Supplied and installed
Mining Operation, Vent Crushers and transfer points, Twin (2) Dust Collectors 30,000 cfm each, 30 ton Storage capacity, drive through product discharge. Fans, Compressors/Drier, Foundations, Fabrication, Unloading spout, Hopper vibrators, Super structure for tie in to existing structure. Turnkey System, Designed, Supplied and installed.

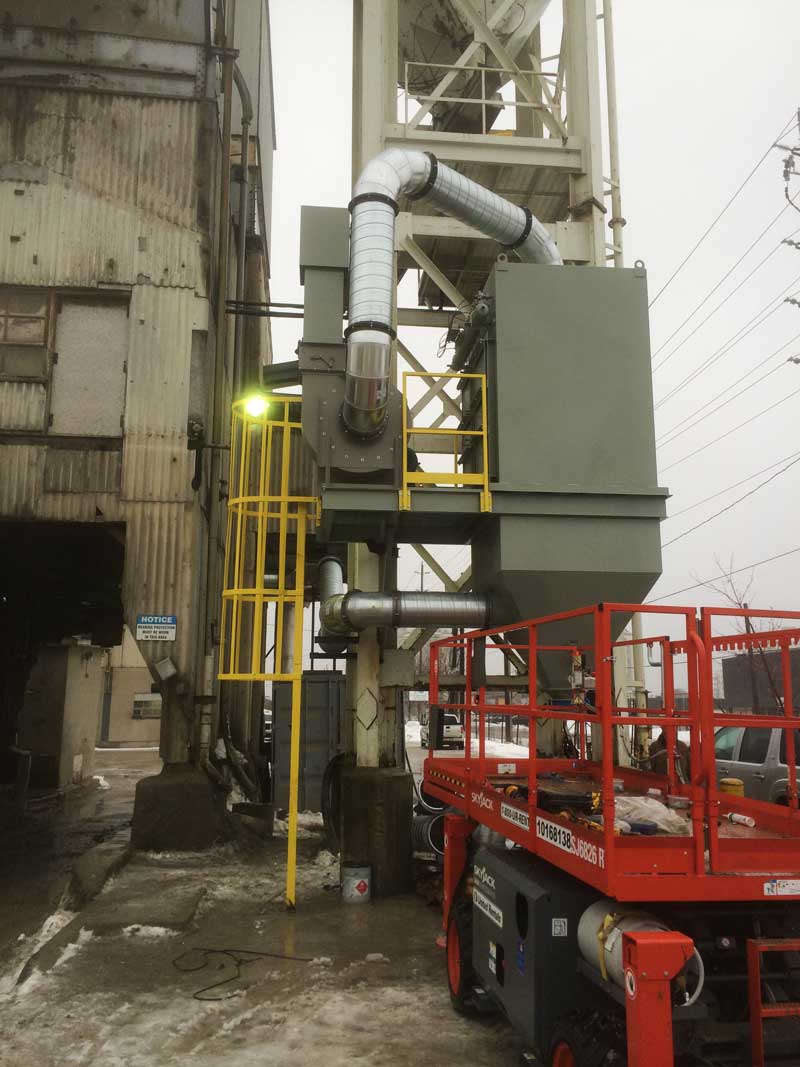

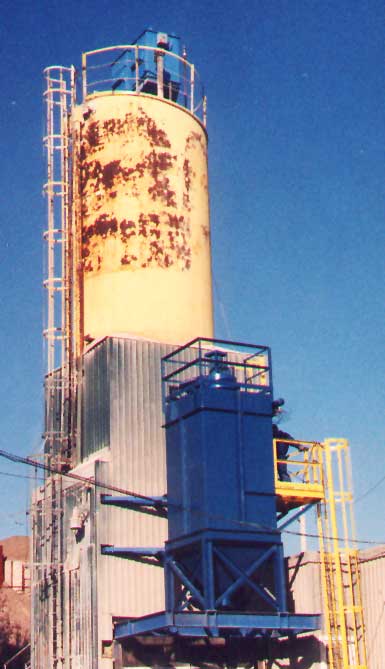

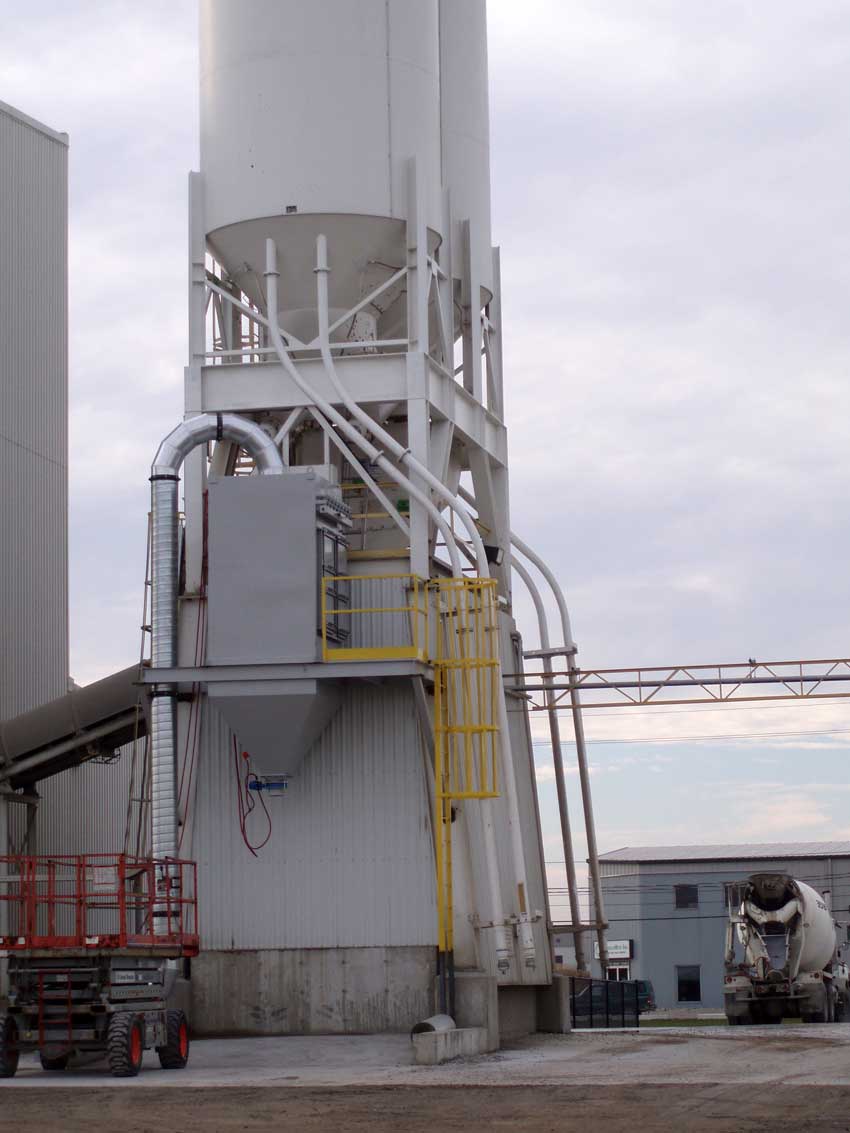

Ready Mix Concrete plant, Dust Collector mounted of existing silo, back in plant. Turnkey System Supplied and installed

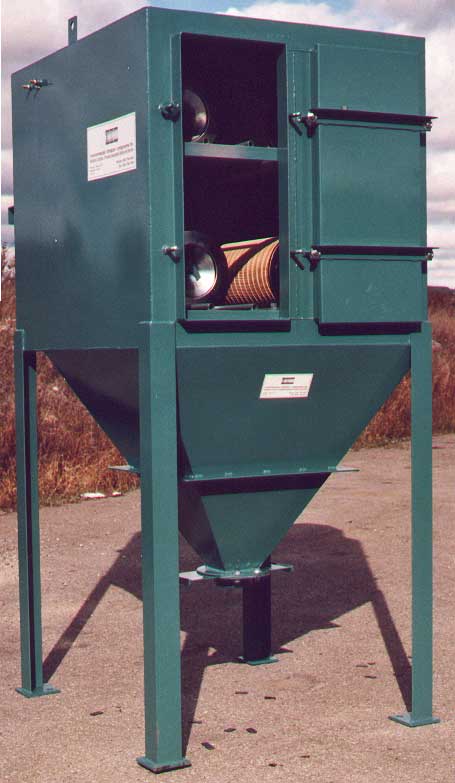

Horizontal Filter Bag Dust Collector , removal of filters from the clean side of the plenum

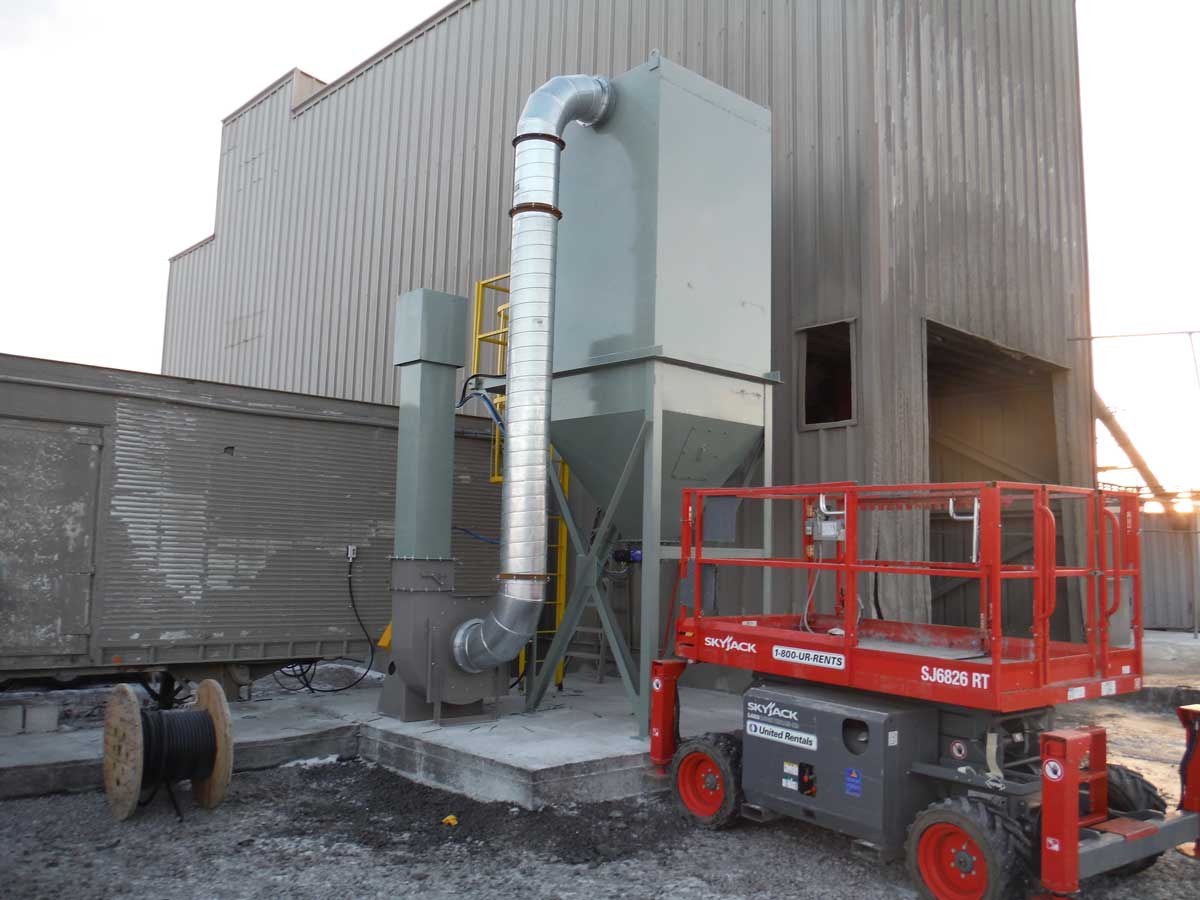

Ready Mix Concrete plant, stand-alone Dust Collector, back in plant. Turnkey System Supplied and installed

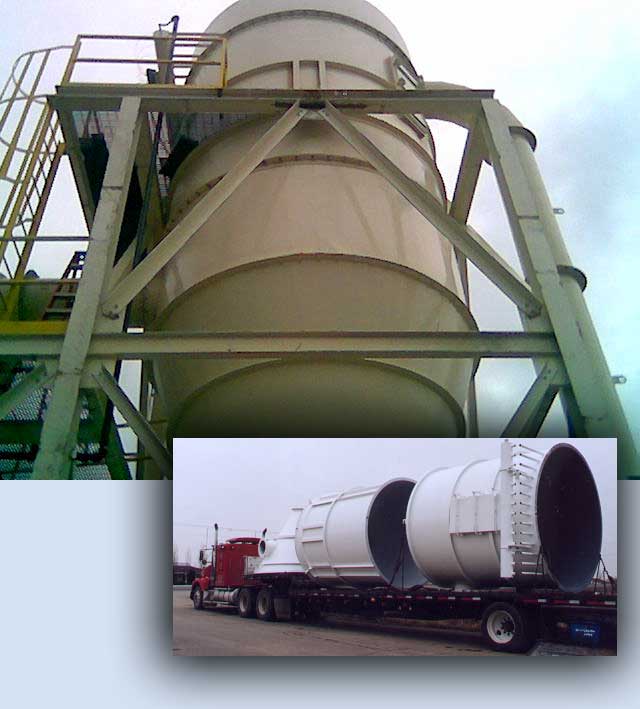

Filter Receiver, local mineral producer, 15000 cfm, free standing unit

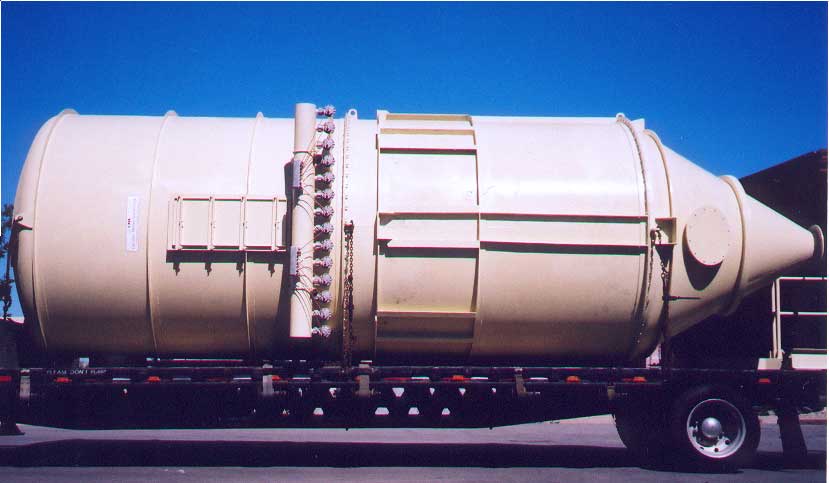

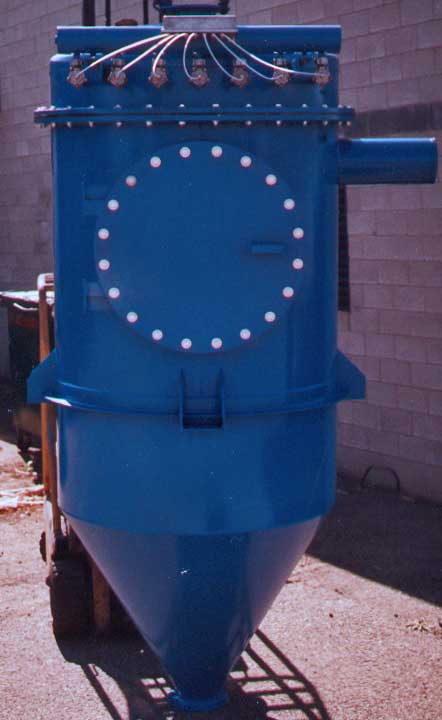

Filter Receiver, high pressure construction
Ready Mix Concrete plant, back in plant, mounted into existing structure. Turnkey System Supplied and installed

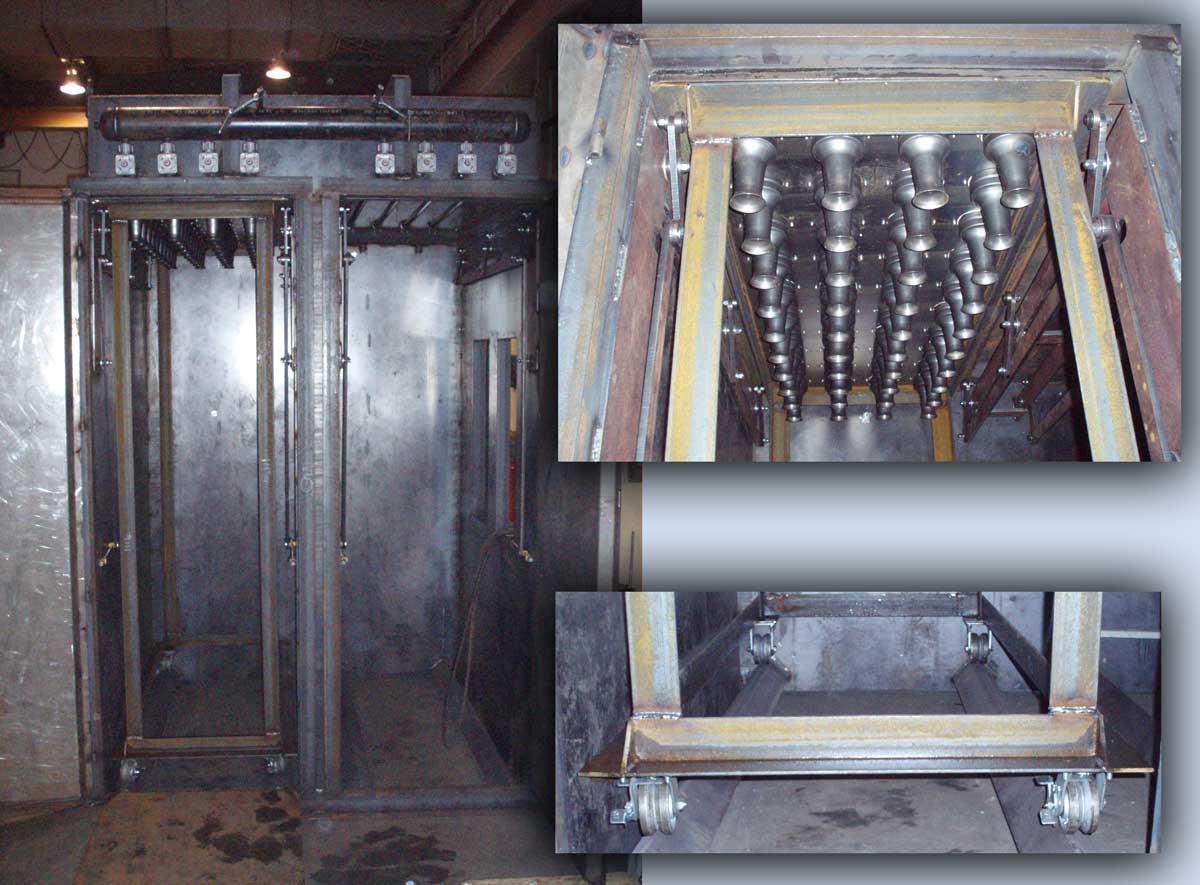

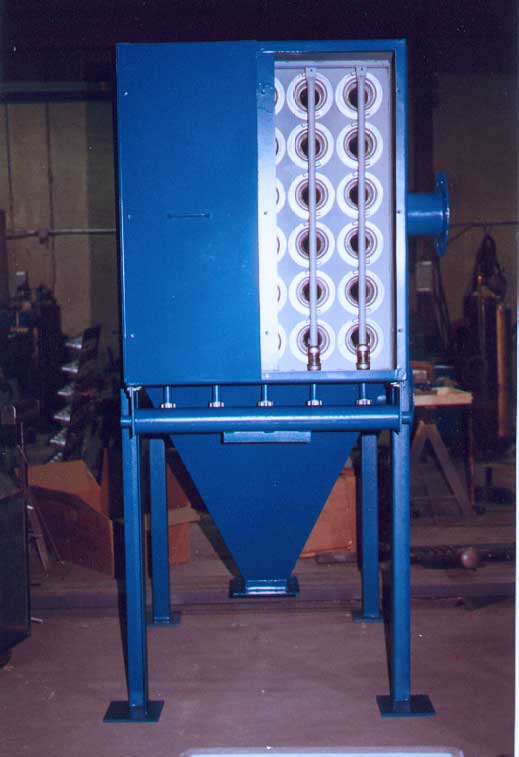

Dust Collector with removable filter racks, quick and easy change out for the powder paint industry
Filter Receiver, 25000 cfm

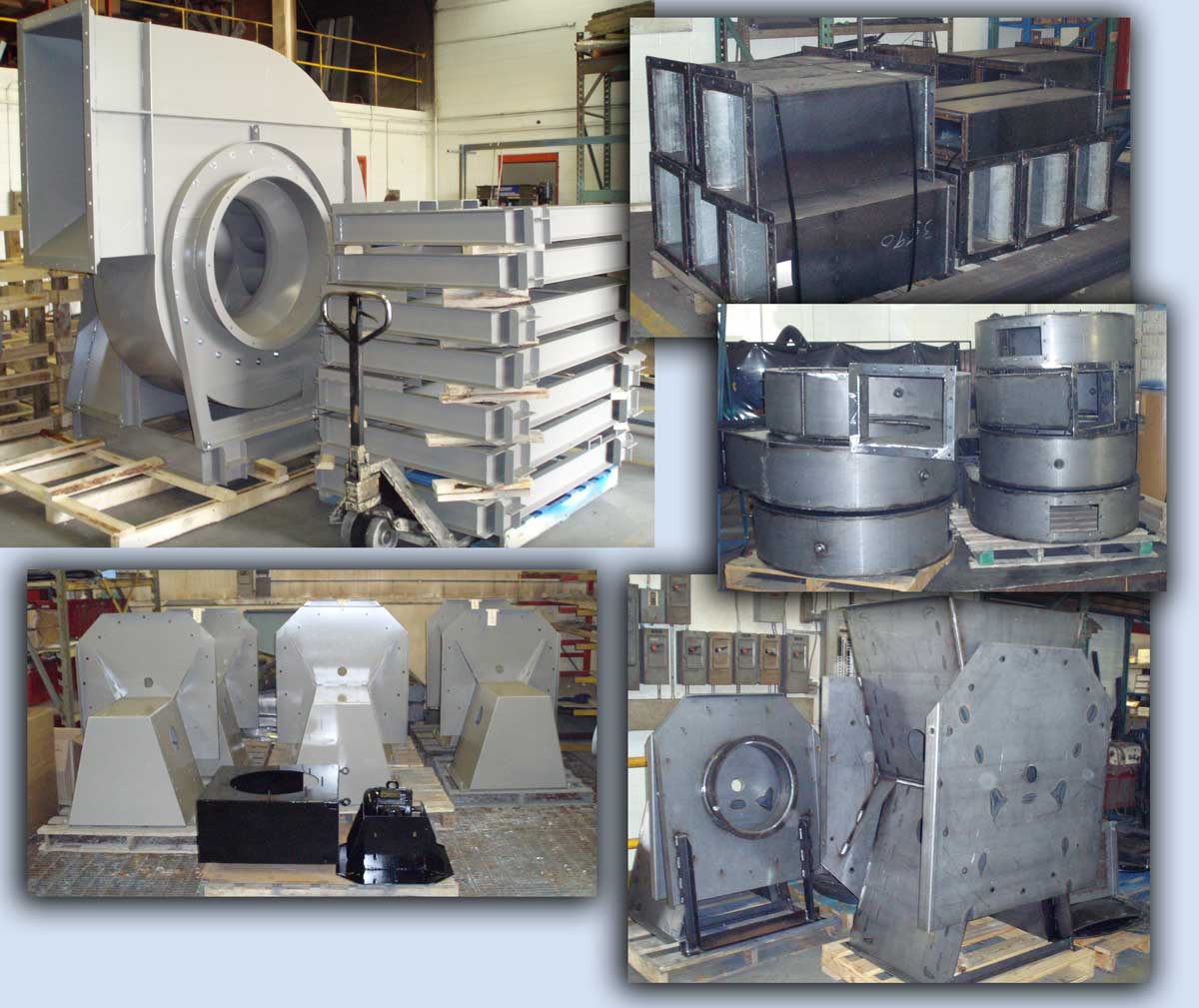

Fans and Exhaust Silencers

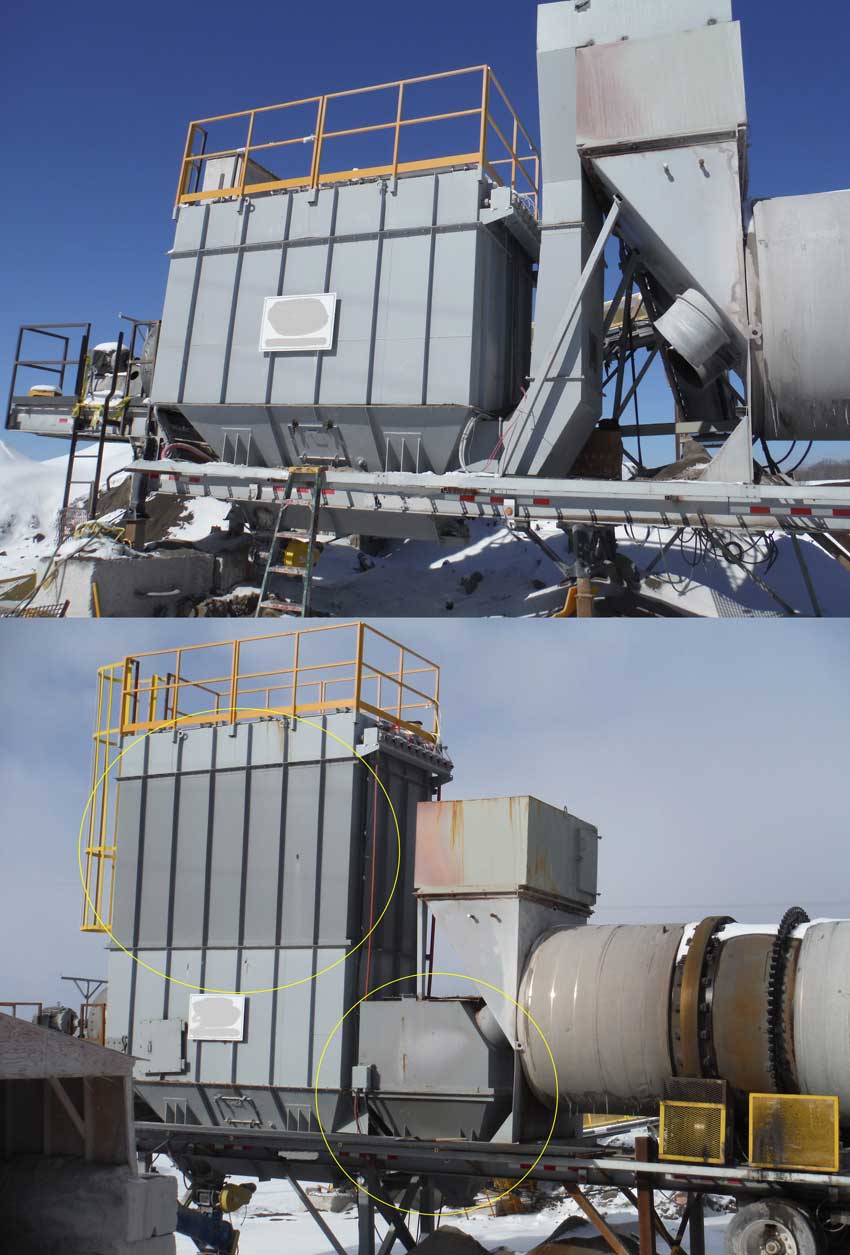

Rework of competitors Dust Collector. The customer kept blowing out the filters and could not achieve the desired air. Lift off plenum, fabricate new spool piece, replace pleated filters with bag type, Nomex, fabricate new knock out box. Design, supply and install.

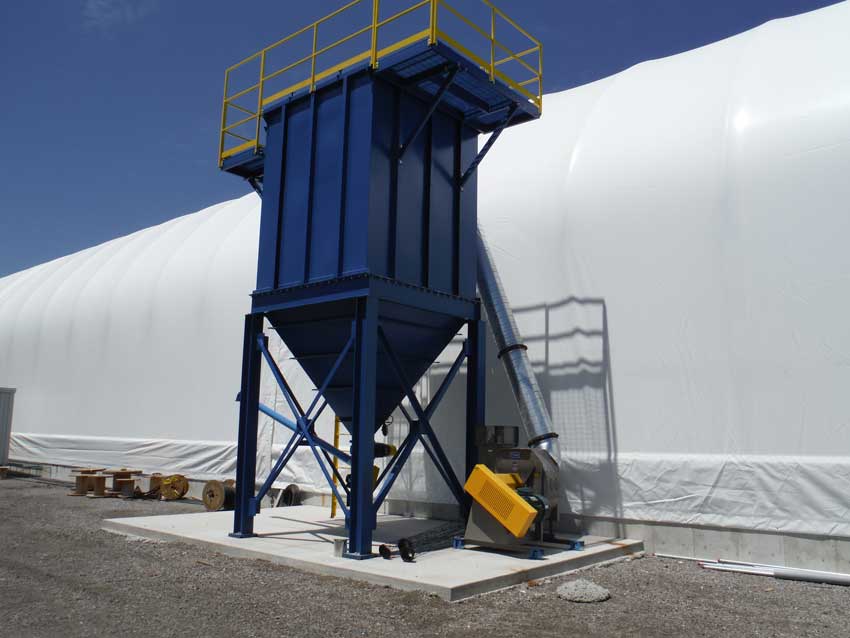

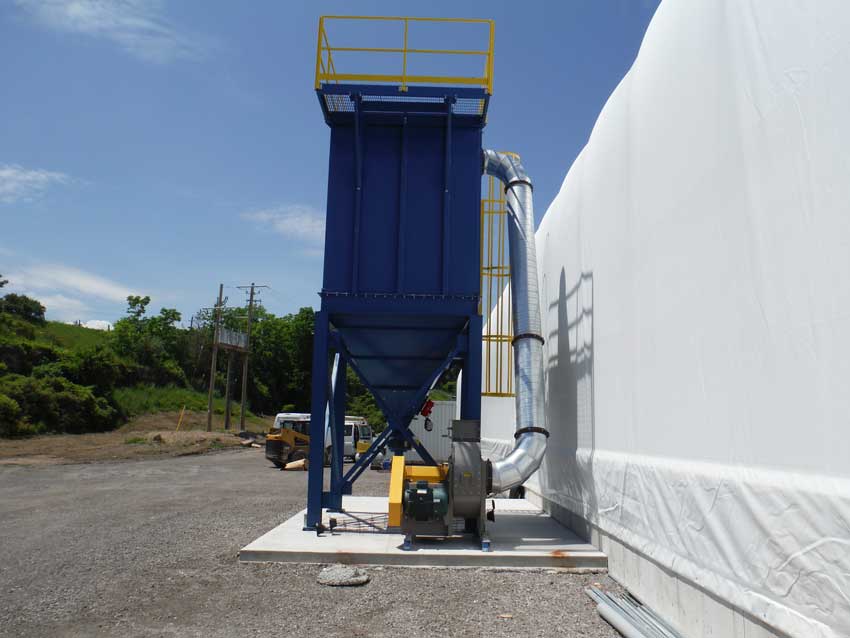

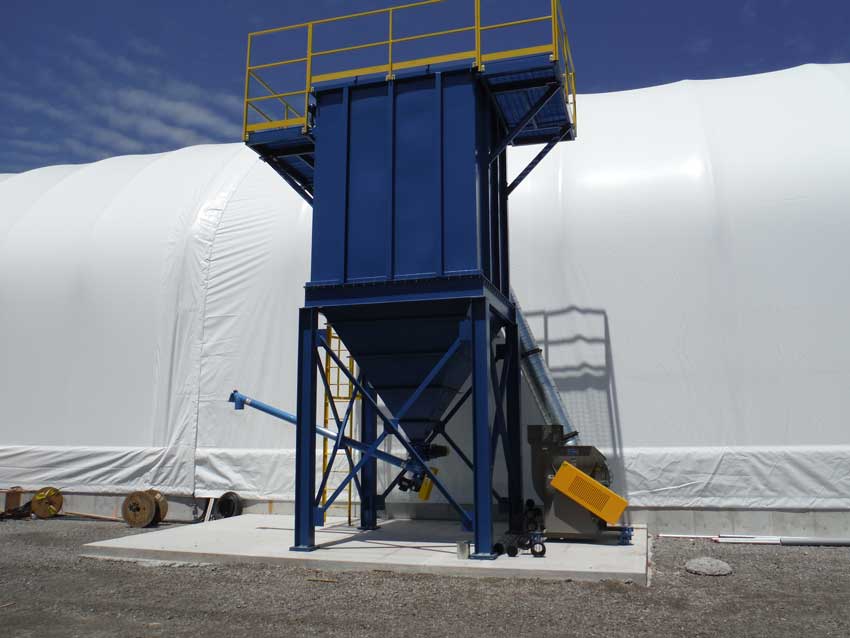

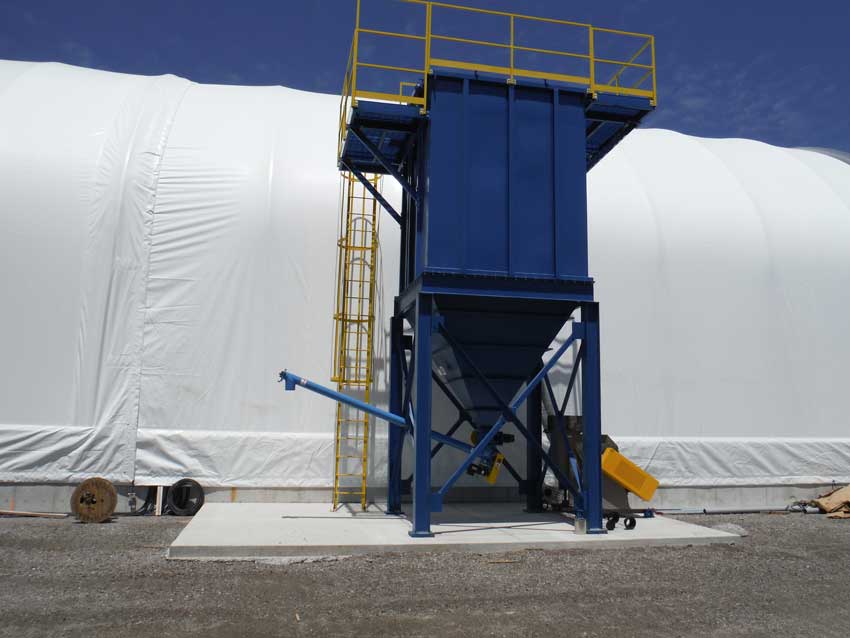

Dust Collection System for Limestone screening operation, Vent screen and transfer points. Foundations, Fan and Motor, Ducting, Discharge Valves, Auger. Design, Supply and install.

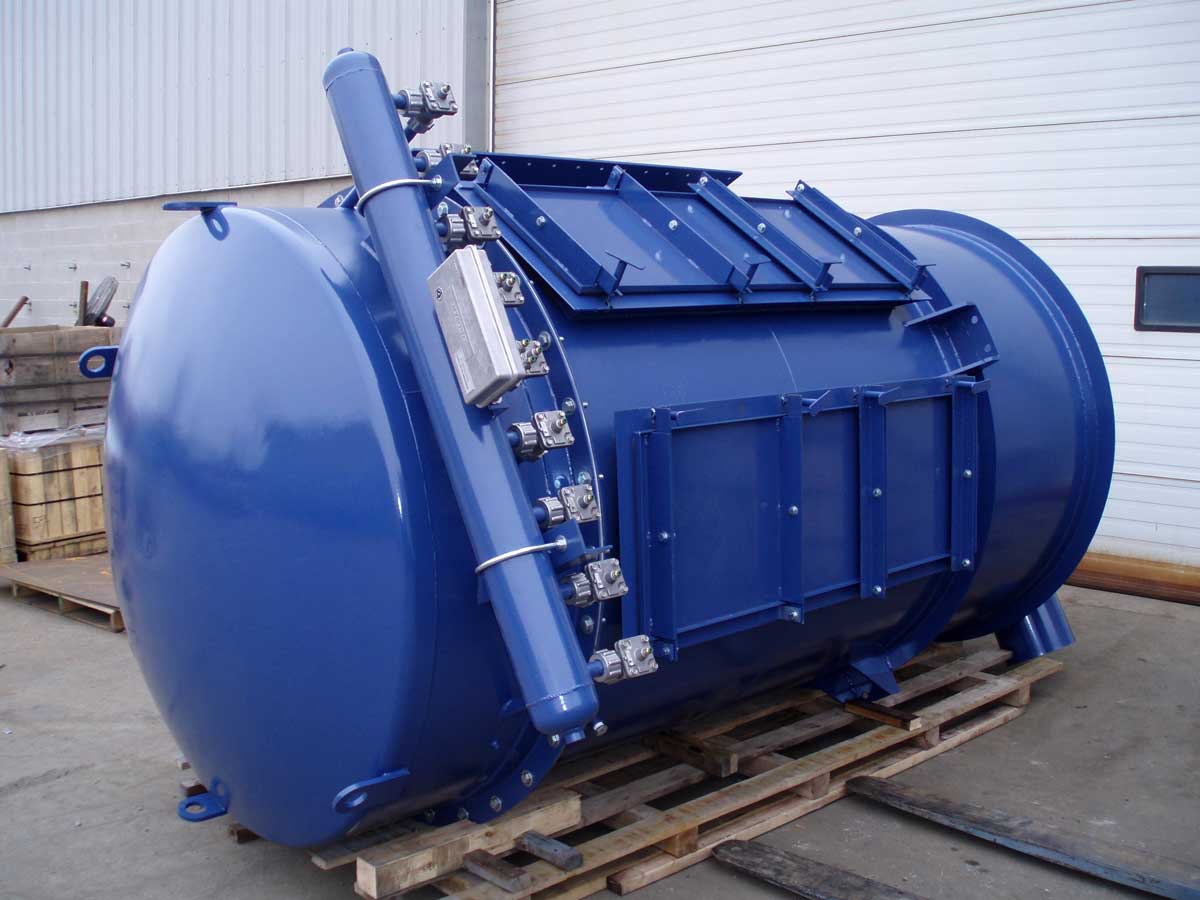

Filter Receiver, High pressure.

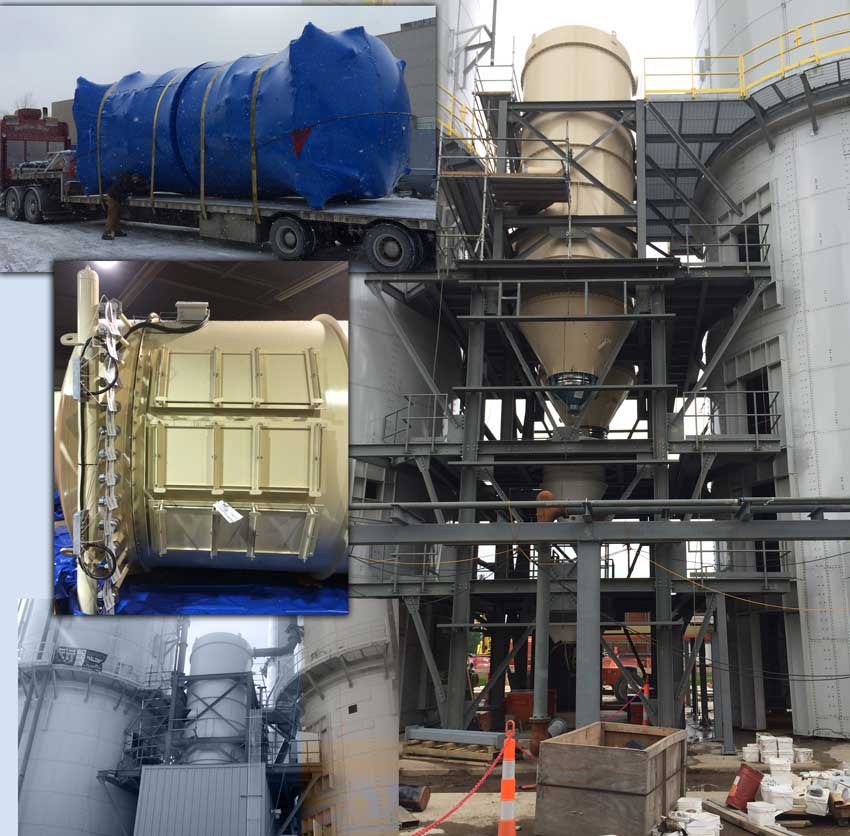

Twin Filter Receivers on Air swept classifying Milling System, Properly tagged and protected for export and installation
