Over the last 30 years, we have developed a unique Dust Collection system for the Ready Mix Concrete sector. We have learned from our installations what is important to plant operators.

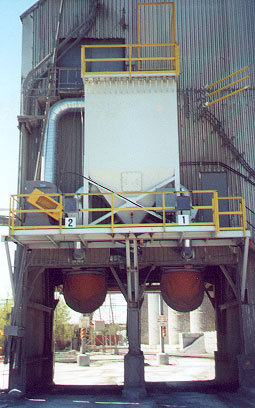

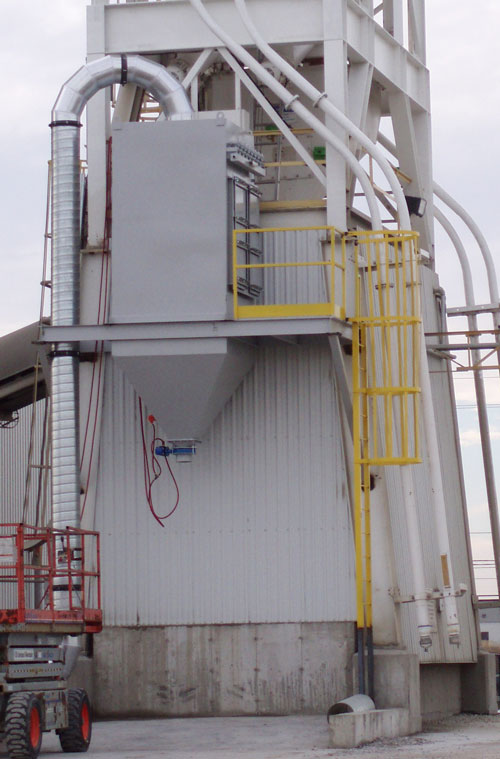

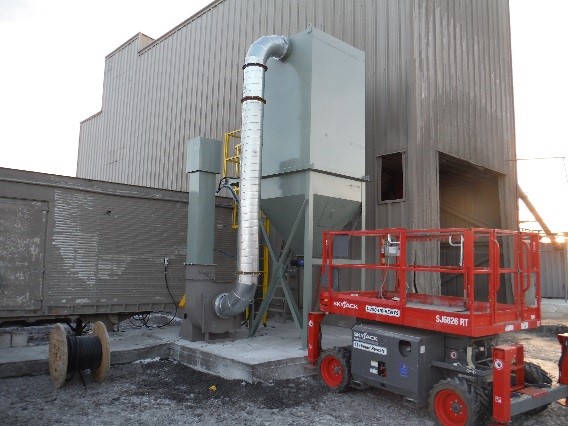

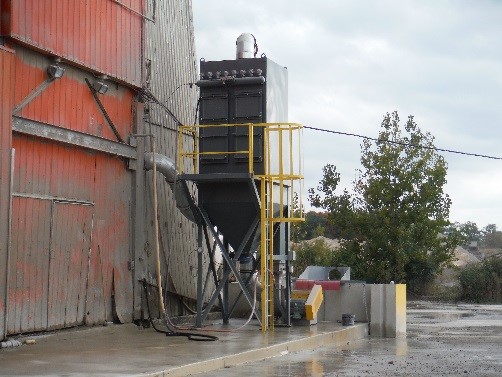

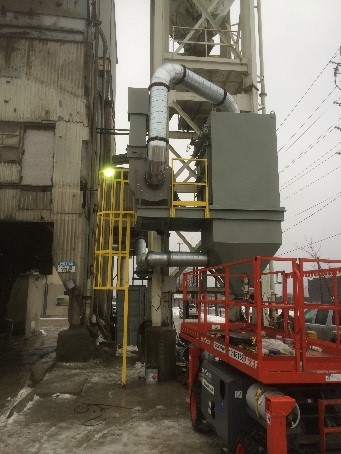

We supply and install complete Dust Collection systems including the Dust Collector, silo or mounting modifications, the fan and motor, the discharge valve, pneumatic hopper vibrators, butterfly or rotary discharge valve, pneumatic controllers, the ducting and hood

We have developed several types of capture hood designs. Our flexible connections at the mounts and pick-up duct prevent the hood assembly from damage.

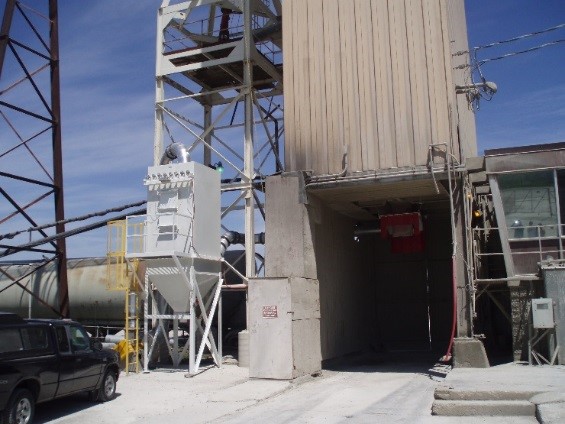

Back in type hoods use skirting to keep a tight seal around the back of the truck to capture the dust in the displaced air during loading. Narrow type or conveyor type truck hoods are used to prevent the conveyor belt from hitting the hood. Canopies that are pneumatically raised and lowered are used when the plant is a drive through type.

The collected dust can be discharged back into the system for loading into the trucks, or can be discharged into a barrel when the Dust Collector is mounted on the ground. The hopper is complete with a pneumatic vibrator to ensure complete discharge of the collected material. A rotary discharge valve or butterfly damper is used to meter the collected material back into the loading system for precise control.

The Dust Collector is heavy duty to resist the wear caused by the various products used in the production of Cement.

Filters are removed from outside the unit, no confined space entry permits required.

Systems are routinely installed in one day. Our customers usually provide the electrical work required to be done by those most familiar with their electrical systems.

Feel free to contact us at your convenience, and thank you for visiting our web site.
